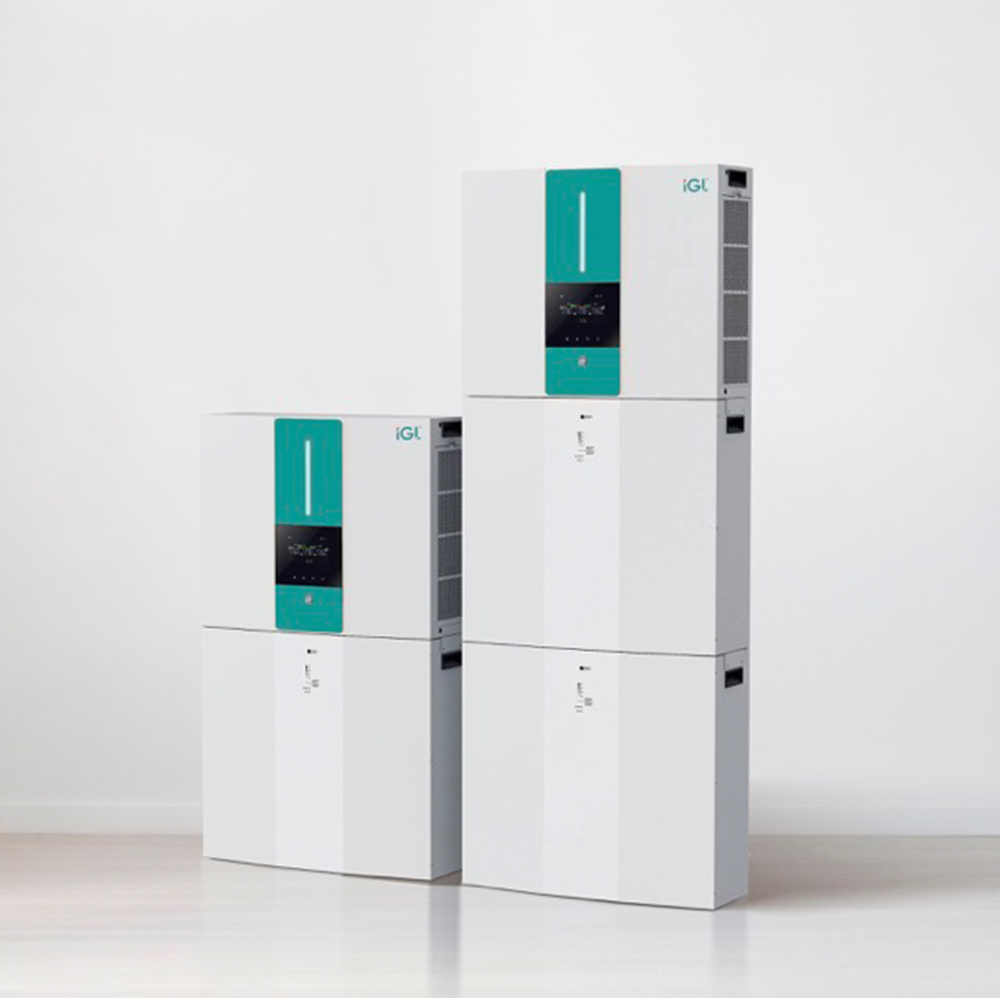

All-in-One Home Energy Storage System

Característica:

  1. All-in-One design combining inverter, battery, and BMS in one compact unit, simplifying installation and reducing system integration cost.

  2. High output power up to 5,500W with pure sine wave output, compatible with household and commercial appliances.

  3. Wide AC voltage compatibility (208/220/230/240VAC) and stable output performance even under fluctuating grid conditions.

  4. Modular and expandable battery system supports energy storage capacity up to 25kWh or more, adaptable to various energy needs.

  5. High efficiency up to 96% (DC to AC), reducing energy loss and improving system performance.

  6. Long-life LFP battery with over 6,000 cycles @80%DOD, ensuring long-term reliability and safety.

  7. Smart charging and discharging with seamless grid-battery switching and up to 40A AC input current support.

  8. Built-in WiFi and RS232 communication for real-time monitoring and remote management.

  9. Stackable, space-saving design with elegant appearance, ideal for residential and light commercial environments.

  10. Certified to international standards including CE, UN38.3, MSDS, IEC62619, and IEC62109 for safety and compliance.

Obtenga una cotización
Categorías: , Etiquetas: , ,
ModeloGL-AIO-5510GL-AIO-5520
INVERTER
Maximum PV Input Power6500W.
Rated Output Power5500W.
Maximum Charging Power5000W.
Grid Connection CertificationCE-LVD/IEC62619-1/IEC62619-2/IEC62040-1/VDE-AR-N4105/VDE0126-1-1 AS4777.2/NRS097-2-1:2017;EN50438:2013;G99/1-6:2020
PV INPUT(DC)
Nominal DC Voltage/Max. DC Voltage360Vdc/500Vdc
Start-Up Voltage/Initial Feeding Voltage116Vdc/150Vdc
MPPT Voltage Range120Vdc-450Vdc
Number of MPPT Trackers/Maximum Input Current2/2*13A
GRID OUTPUT(AC)
Nominal Output Voltage208 / 220 / 230 / 240 VAC
Output Voltage Range184-264.5Vac
Maximum Output Current23.9A
Maximum Conversion Efficiency(DC/AC)96%
European Efficiency @ Nomial95%
AC INPUT
AC Start-Up Voltage/Auto Restart Voltage120-140Vac / 180Vac
Acceptable Input Voltage Range170-280 Vac
Maximum AC Input Current40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage208/220/230/240 Vac
Max. Conversion Efficiency(DC/AC)93%
BATTERY TECHNICAL SPECIFICATION
Nominal DC Voltage51.2Vdc
Battery Capacity200Ahorcado400Ahorcado(200Ah*2)
Maximum Operating Current120A200A
Store Energy10.24KWh20.48KWh
Voltage Range(Vdc)48-56V48-56V
ProtectionBms,Breaker,InverterBms,Breaker,Inverter
Inner Resistance< 20mOhm< 20mOhm
Vida en bicicleta>= 6000 Cycle @80% DOD @25°C>= 6000 Cycle @80% DOD @25°C
Security CertificationUN38.3/MSDS/IEC62619(CB),CE-EMCUN38.3/MSDS/IEC62619(CB),CE-EMC
SYSTEM PARAMETER
Dimensión(D incógnita W. incógnita H)214*621*1205milímetros214*621*1755milímetros
Net WeightAprox. 140kilosAprox. 235kilos
Output WaveformOnda sinusoidal pura
Operating Temperature/Humidity Range0-55° C / 0-80%RH
ProtocolWiFi and RS232
