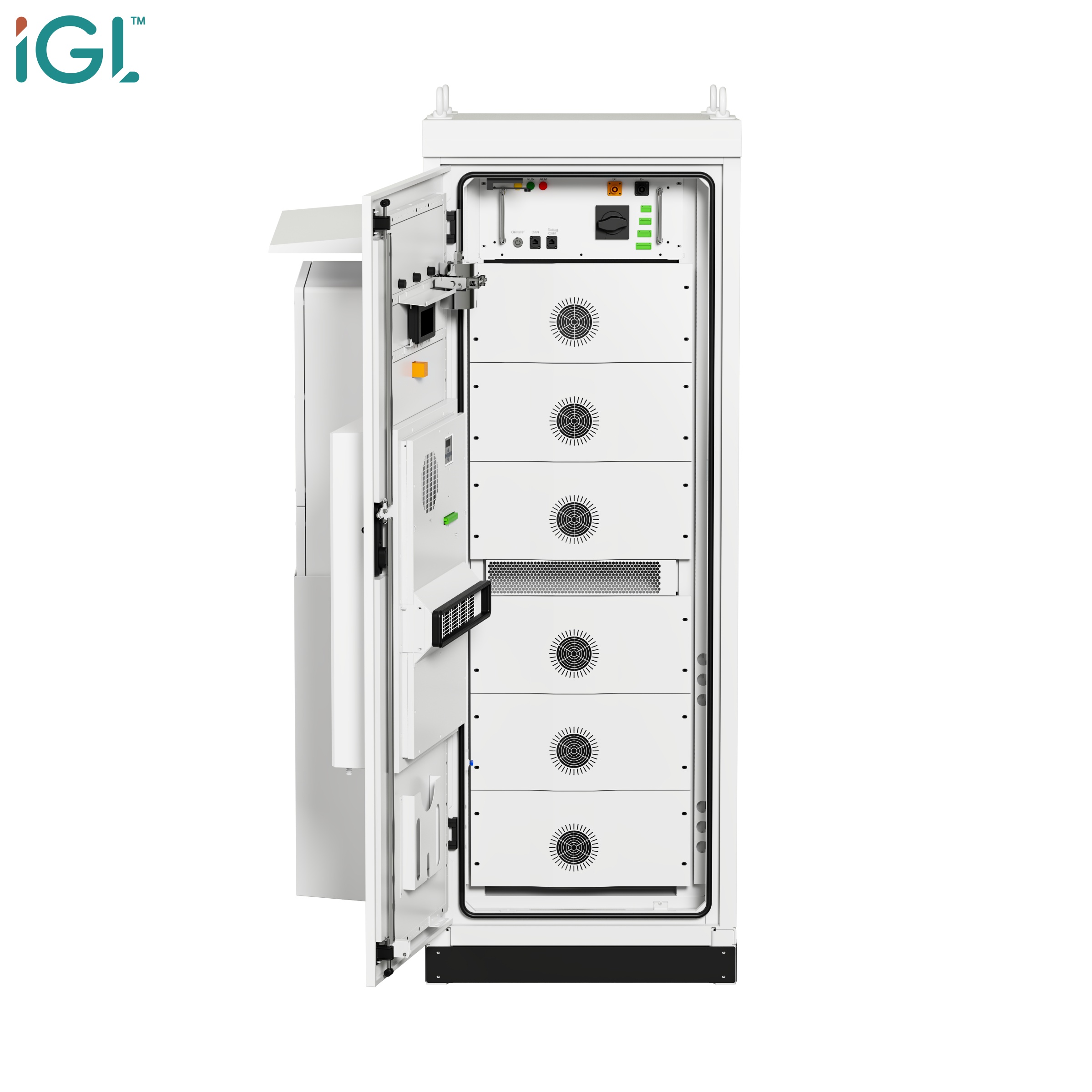

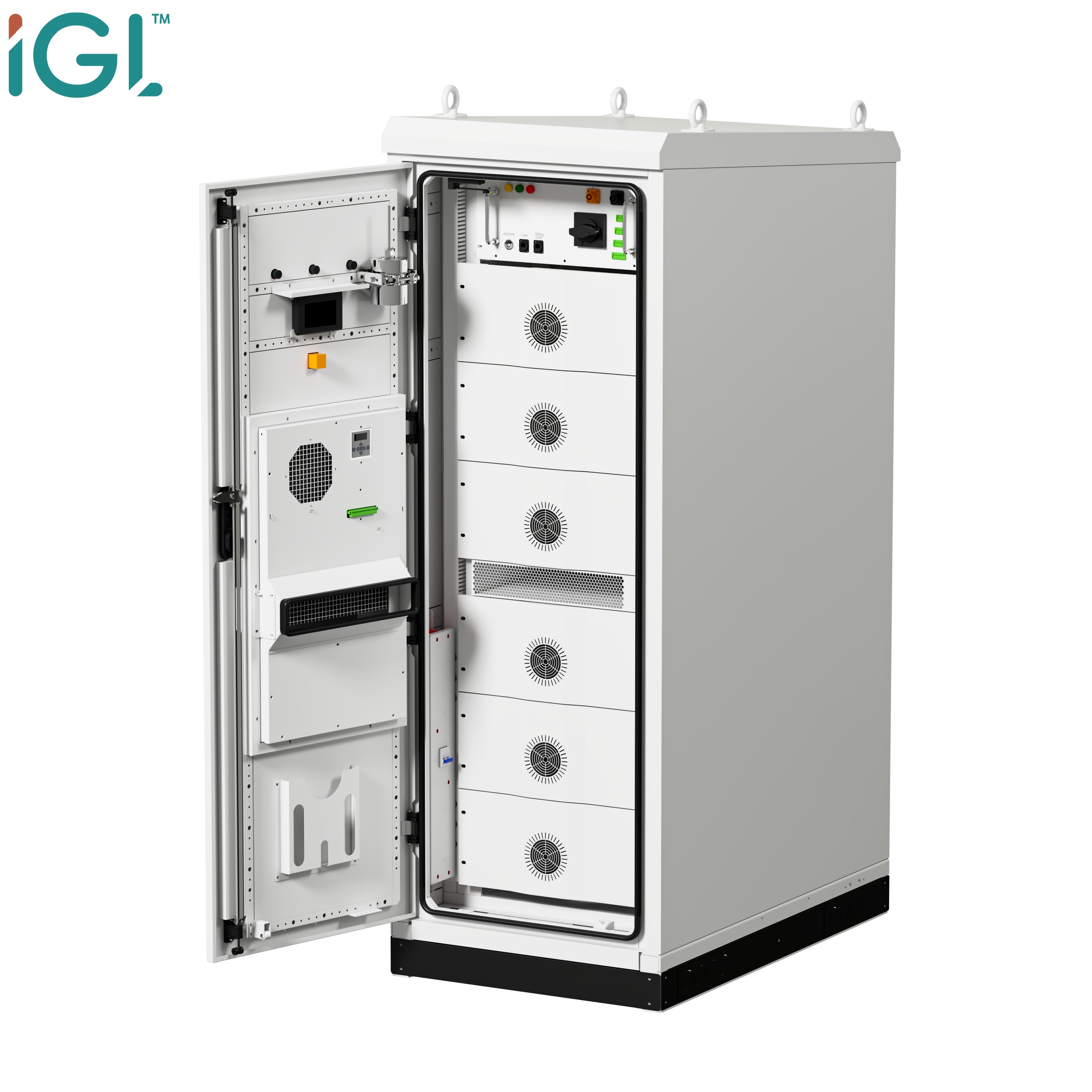

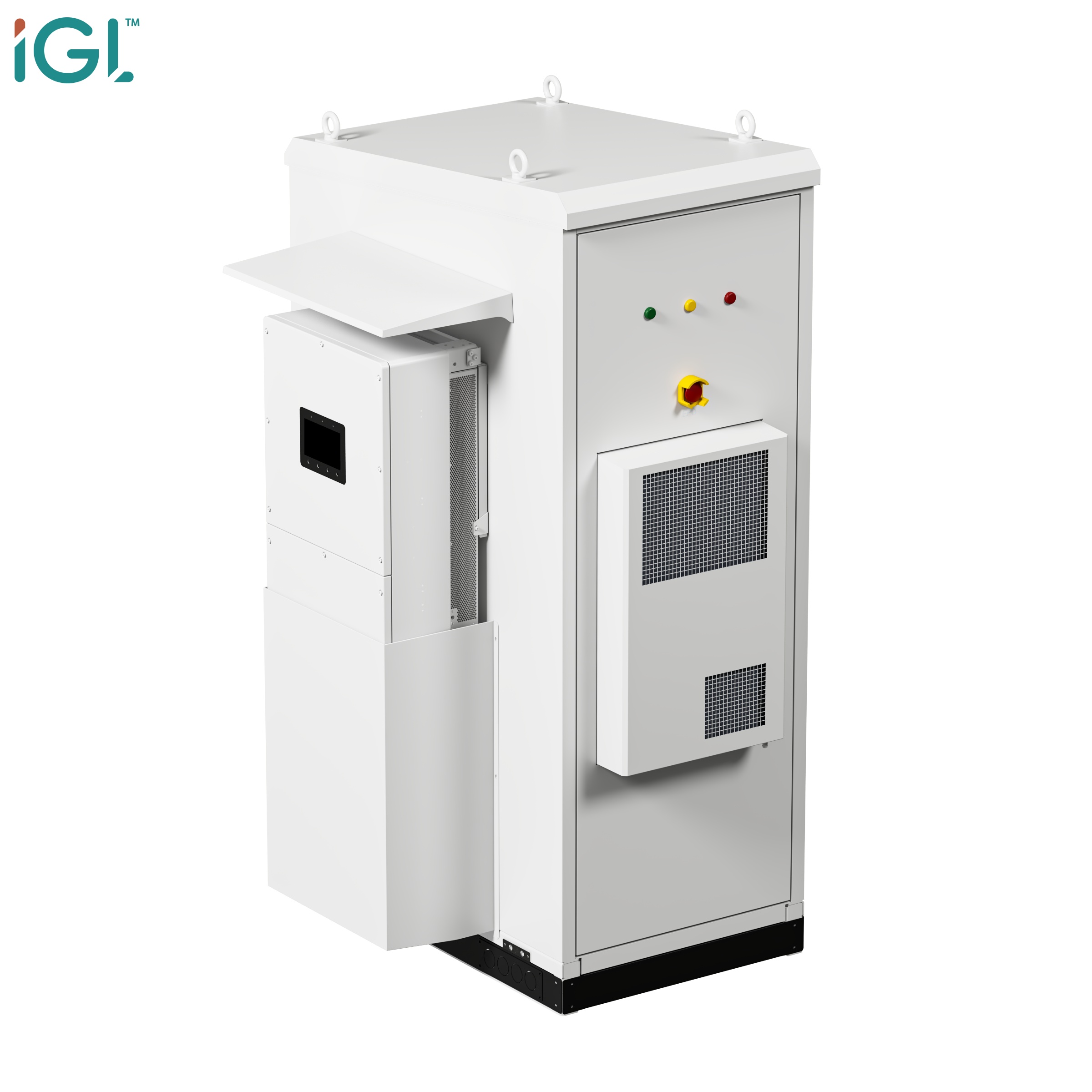

120KWh/50KW Air Cooling Container Energy Storage System

Product Highlights:

  • Easy to install and deploy with large space utilization
  • Unique modular design & flexible function configuration
  • With self-use, peak shifting, forced charging & discharging and other working modes
  • Strong scalability, simple & convenient expansion on both AC and DC sides
Get A Quotation
Category: Tags: , ,
Model IGL eBank 120KWh
Battery Type LFP
Number of battery packs 6
Rated voltage 384V
Voltage range 336~432V
Rated energy 120.5KWh
Max. continuous charging and discharging current 140A
Discharge Depth 90%
Cycle life 8000 times
PV parameters
Cooling mode Air cooling
Energy 358.4kWh
Max. PV input power 96KW
Rated input voltage 600VDC
Max. input voltage 1000VDC
MPPT voltage range 150~850VDC
PV input current 40A*4
AC side parameters
AC rated output power 50KW
AC Max. output power 50KVA
AC rated input/output current 76A
Isolation transformer Transformer less
voltage 3L/N/PE; 230/400V
Frequency 50/60Hz
THDi ≤3%
Power Factor 0.8 leading to 0.8 lagging
System parameters
Dimension (W*H*D) 750*2095*1200mm
Weight About 1532kg
Communication CAN/RS485/WIFI/ETH
Design Life 10 years+
Expansion Support in parallel
Enclosure protection rating IP54
Cooling Air Cooling
Operation temperature Charging:0~50℃ Discharge:-20~50℃
Humidity 10%~95%RH
Altitude <2000m
Related
  • C&I Energy Storage

Related products

241KWh/115KW Air-Cooling Container Energy Storage Battery

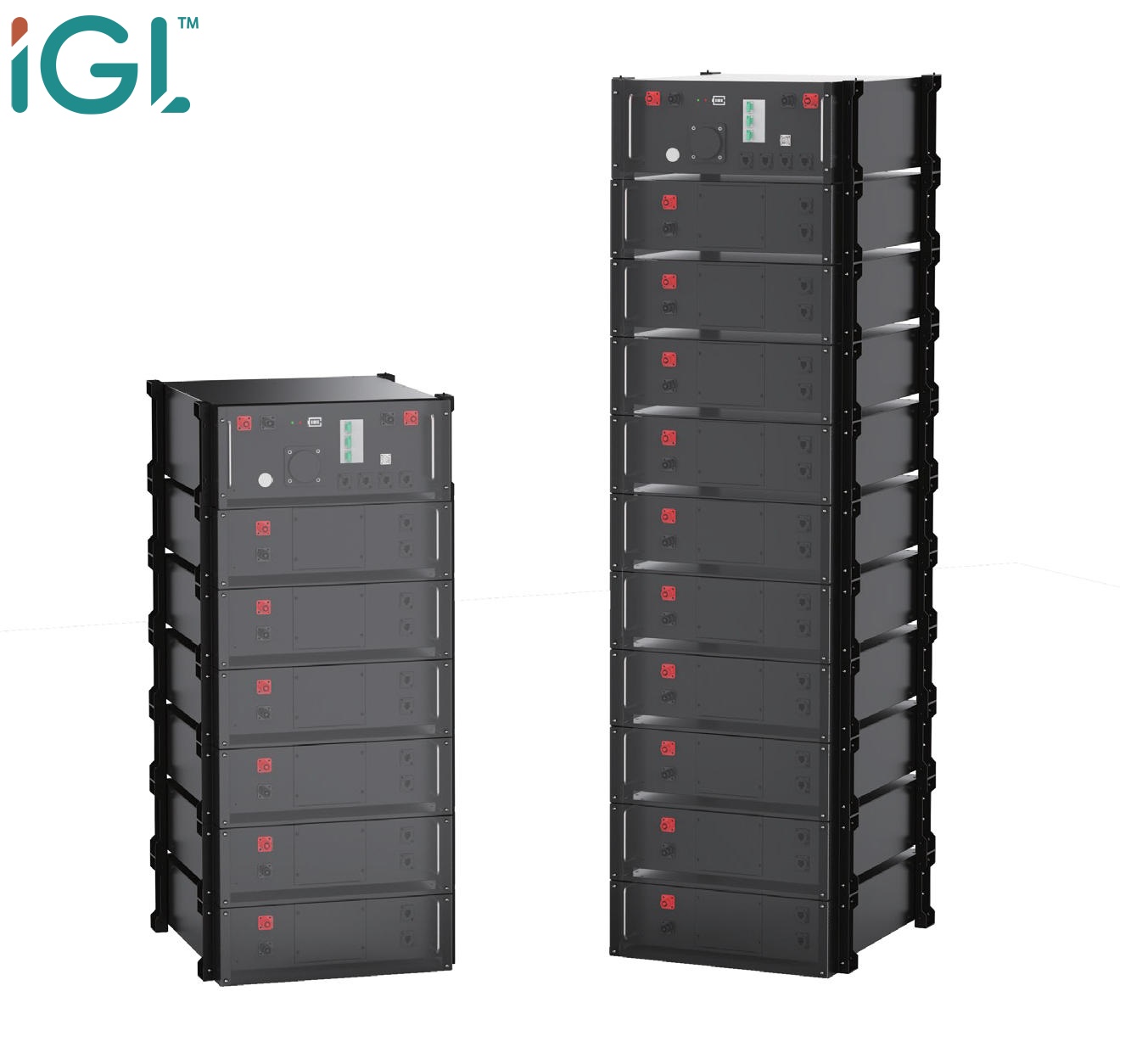

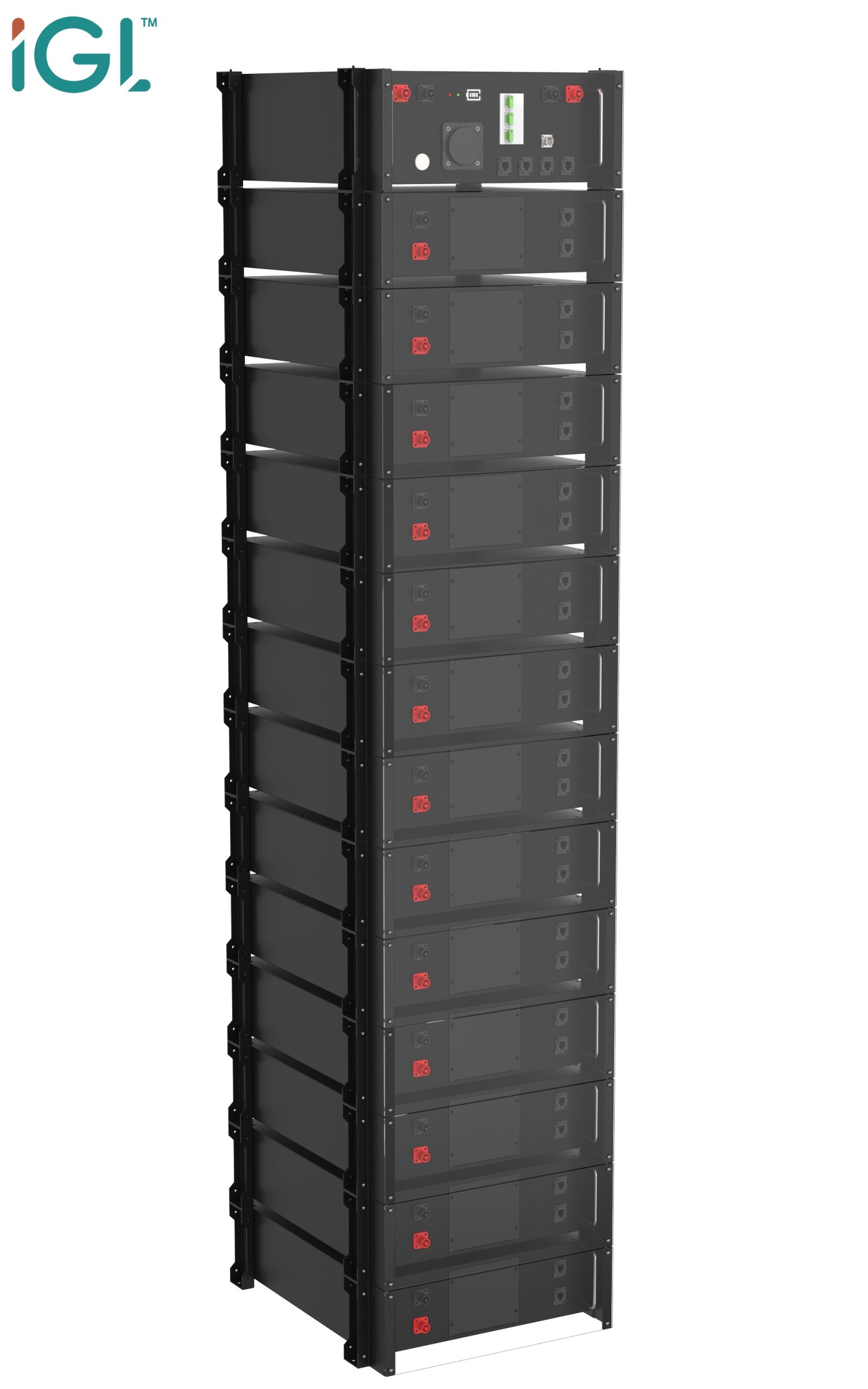

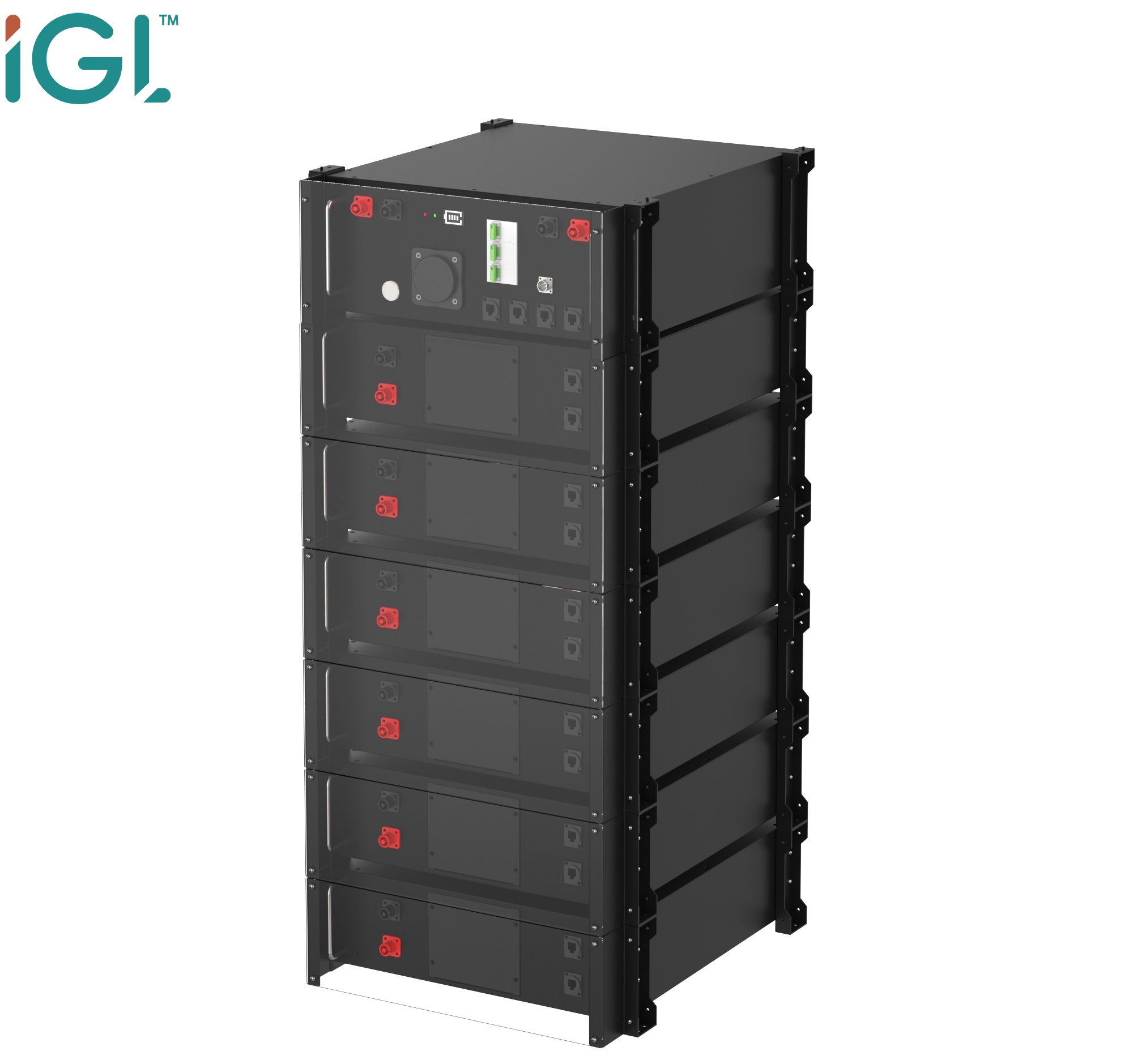

3U High Voltage 20/30/40/50/60KWH Rack Battery
